Fiber Optic Cable (Duplex | Dual Core)
- LC-LC Single (Multi) Mode
Our patch cables are available with full standard optical specifications and precise length tolerences. All assemblies are 100% inspected for optical characteristics and fiber end face finish. The optical fiber patch cables are suitable for data communications, telecommunication applications. The terminated connectors in assemblies are designed to and are compatible with industry standards.
- Compact and strong crimping offers exceptional tensile strength in cable assemblies
- Good geometrical characteristics of apex offset and radius of curvature and fiber height
Specifications
| Connector Type |
LC-LC |
| Available Cable Length |
1m/2m/3m/4m/5m |
| Available Cable Mode |

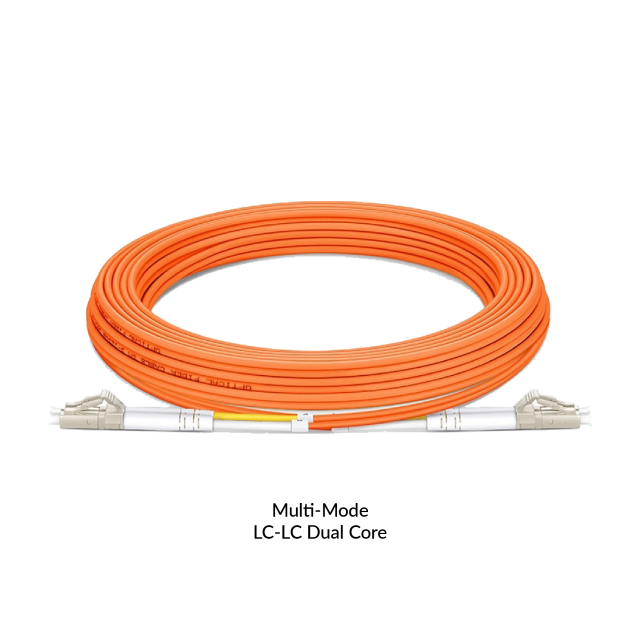

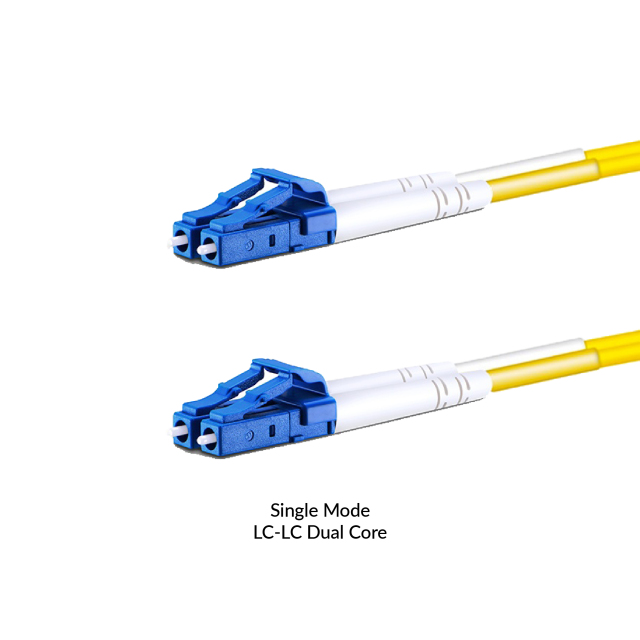

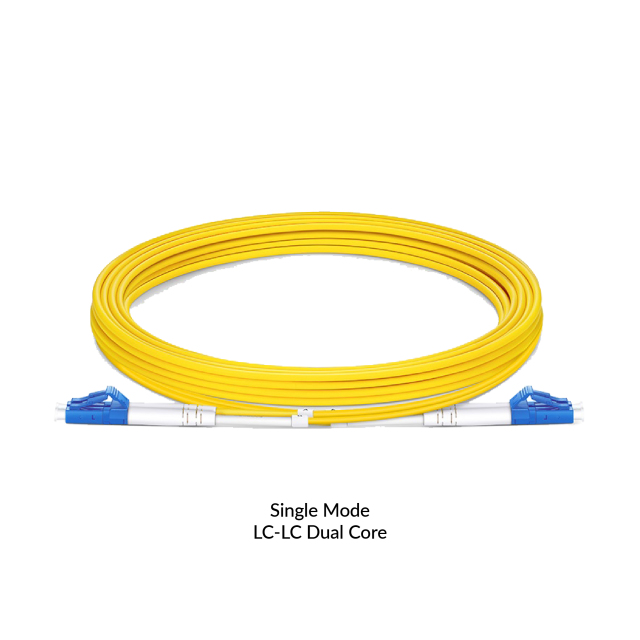

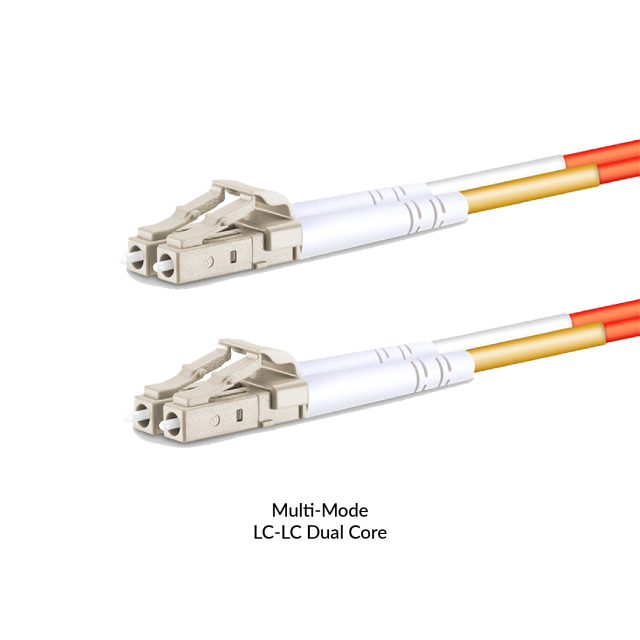

Yellow for Single Mode / Orange for Multi Mode |
| Insertion Loss |
≤ 0.2 db |
| Connector Return Loss |
PC≥ 45 db, UPC≥50 , APC≥60 |
| Wavelength |
850nm/1300nm |
| Min. Bend Radius (Fiber Cable) |
20/10D (Dynamic/Static) |
| Repeatability |
≤ 0.1 db |
| Tensile Force |
≥ 70N ~ ≥ 90N |
| Mechanical Durability |
≥ 1000 times |
| Cable Jacket |
PVC |
| Operating Temperature |
-20 °C ~85 °C |
| Storage Temperature |
-40 °C ~80 °C |
