Single Door Magnetic Lock (350lbs / 600lbs)
Single Door Magnetic Lock is designed for safety door, fire rated door, general metal doors etc. The magnetic lock is fixed on the top of the door frame, a suction plate is fixed on the door leaf.
- Anti-residual magnetism design
- Anti-wear material to increase magnetic force
- Double lock cylinder insulated with high-strength alloy material and anodized hardened plating

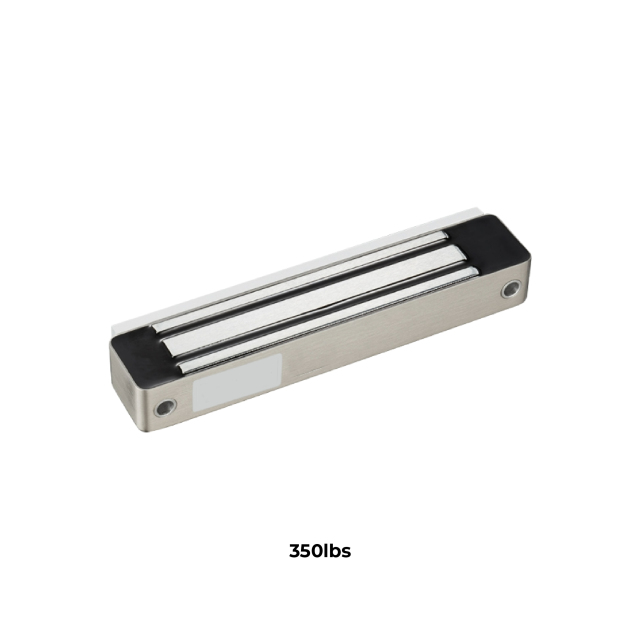

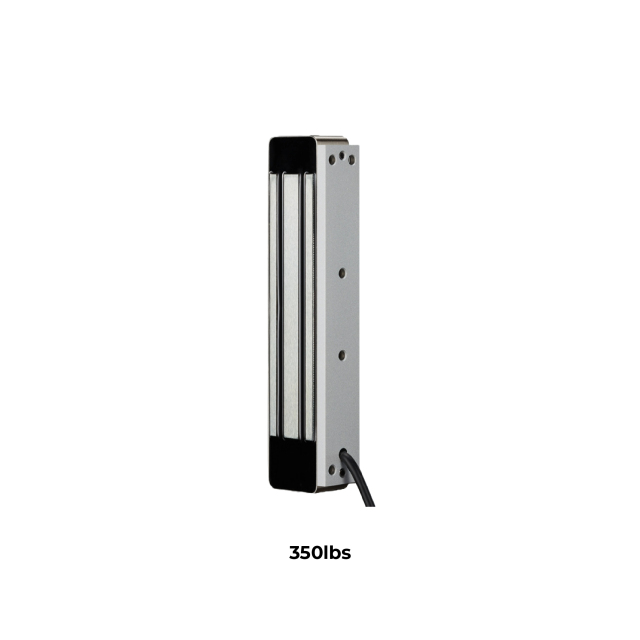

350lbs Door Magnetic Lock
| Dimension |
175 x 39.5 x 26.5mm |
| Adhesive Base |
130 x 32 x 10mm |
| Max Tension |
180kg (350Lbs) |
| Working Current |
12V/400mA (±10%); 24V/200mA (±10%) |
| Door Type |
Wood Door, Glass Door, Metal Door, Fire Rated Door |
| Weight |
1.2kg |
| Water Resistance |
IP 68 |

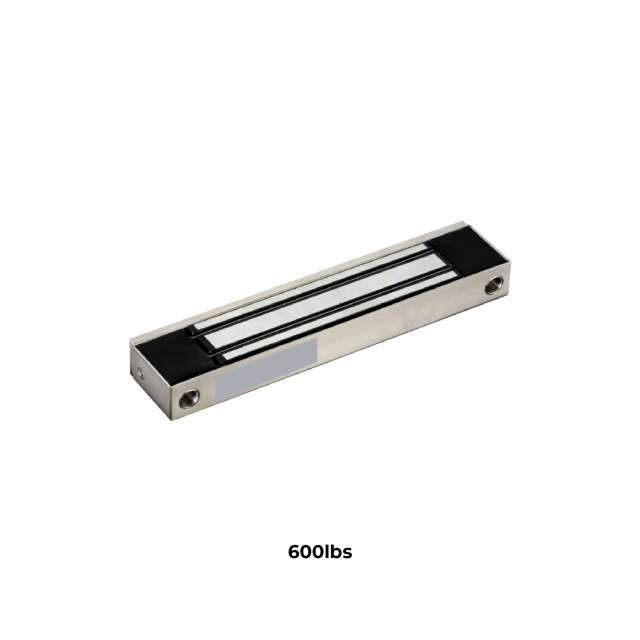

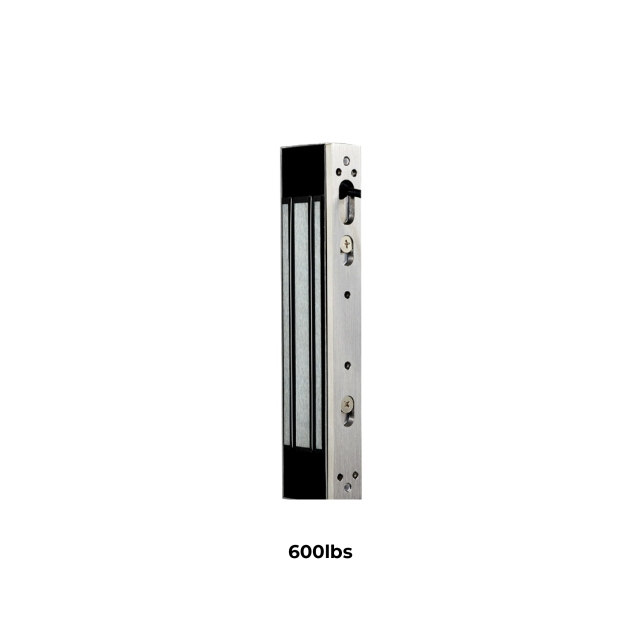

600lbs Door Magnetic Lock
| Dimension |
225 x 48 x 25mm |
| Adhesive Base |
180 x 33.2 x 13.2mm |
| Max Tension |
280kg (600Lbs) |
| Working Current |
12V/500mA (±10%); 24V/250mA (±10%) |
| Door Type |
Safety Door, Fire Rated Door, Iron Door, Aluminium Door |
| Weight |
2.1kg |
| Water Resistance |
IP 68 |
